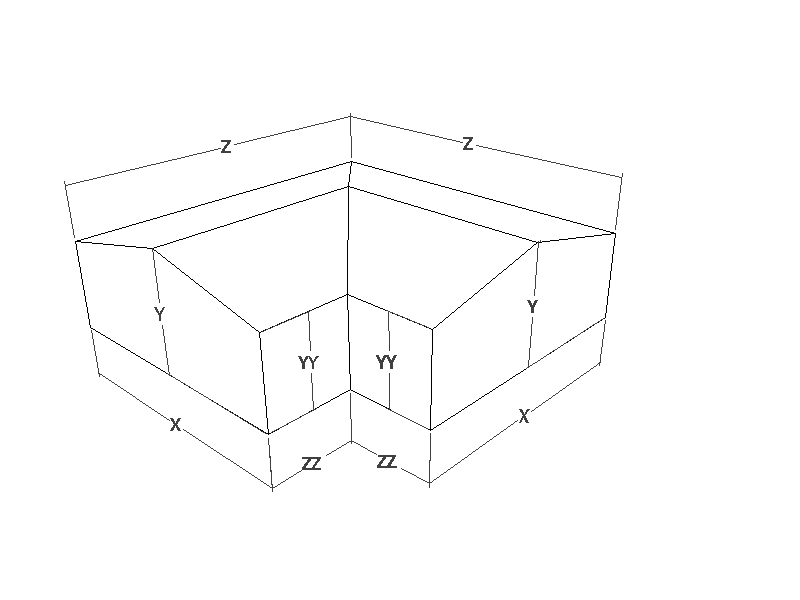

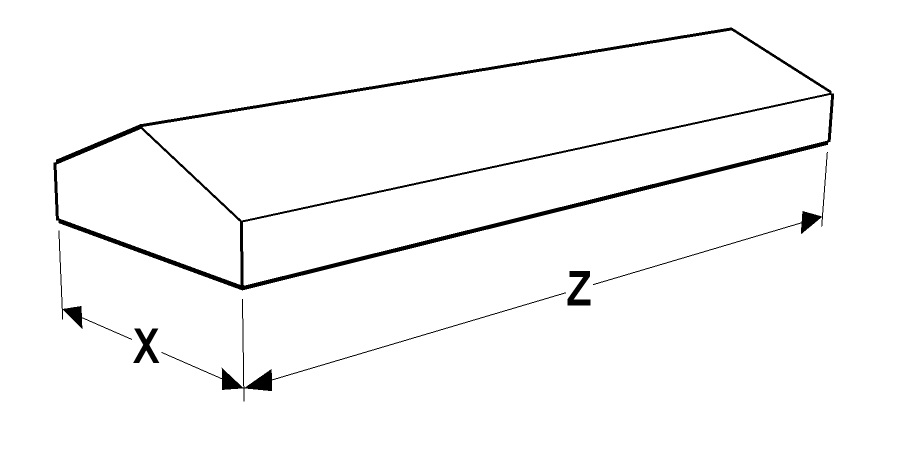

Wall Cap WC4
| Rendering |
 |
|
|
|
| X |
Y |
Z |
YY |
| 6" |
4" |
24" |
2" |
|
|
| 6" |
4" |
24" |
3" |
|
|
| 8" |
3" |
24" |
2" |
|
|
| 8" |
4" |
24" |
2" |
|
|
| 8" |
4" |
16" |
2" |
Corner |
|
|
| 8" |
4" |
24" |
3" |
|
|
| 8" |
4" |
16" |
3" |
Corner |
|
|
| 8" |
4" |
24" |
3" |
End |
|
|
| 8" |
6" |
24" |
3" |
|
|
| 8" |
6" |
34" |
3" |
End |
|
|
| 8" |
5-1/2" |
24" |
4" |
|
|
| 8" |
3" |
24" |
2-1/4" |
|
|
| 8-1/2" |
2-1/4" |
32" |
1-3/8" |
|
|
| 8-1/2" |
3-7/8" |
32" |
2-1/4" |
|
|
| 8.5" |
3-3/4" |
24" |
3" |
|
|
| 8-1/2" |
3" |
32" |
2-1/4" |
|
|
| 9" |
4" |
24" |
3" |
|
|
| 9" |
4" |
24" |
3" |
End |
|
|
| 9" |
4" |
16" |
3" |
Corner |
|
|
| 9-3/4" |
4" |
24" |
3-1/2" |
|
|
| 10" |
3" |
24" |
2" |
|
|
| 10" |
4" |
24" |
2" |
|
|
| 10" |
4" |
16" |
2" |
Corner |
|
|
| 10" |
4" |
24" |
2" |
End |
|
|
| 10" |
4" |
24" |
3" |
|
|
| 10" |
4" |
24" |
3" |
End |
|
|
| 10" |
6" |
24" |
3" |
|
|
| 10" |
6" |
24" |
3" |
End |
|
|
| 10" |
5-1/4" |
24" |
4" |
|
|
| 10-5/8" |
5" |
24" |
4" |
|
|
| 11" |
8" |
24" |
8" |
|
|
| 12" |
2-3/4" |
36" |
2" |
|
|
| 12" |
1-3/4" |
24" |
1" |
|
|
| 12" |
2" |
20" |
1-1/2" |
|
|
| 12" |
4" |
24" |
2" |
|
|
| 12" |
4" |
24" |
2" |
End |
|
|
| 12" |
5" |
24" |
4" |
|
|
| 12" |
6" |
24" |
4" |
|
|
| 14" |
4" |
24" |
2" |
|
|
| 14" |
6" |
24" |
3" |
|
|
| 16.5" |
4" |
24" |
3" |
|
|
| 18" |
4" |
24" |
2" |
|
|
| 18" |
6" |
24" |
4" |
|
|
| 20" |
4" |
24" |
2" |
|
|
| 20" |
4" |
24" |
2" |
End |
|
|
| 22" |
4" |
24" |
2" |
|
|
| 24" |
4" |
24" |
2" |
|
|
| 27" |
5" |
24" |
4" |
|
|
| 30.5" |
4" |
24" |
3" |
|
|
| 32" |
3.5" |
24" |
2" |
|
|
| 45" |
6" |
24" |
4" |
|
|
