Wall Cap WC1
| Rendering | |||
|---|---|---|---|
 |
|||

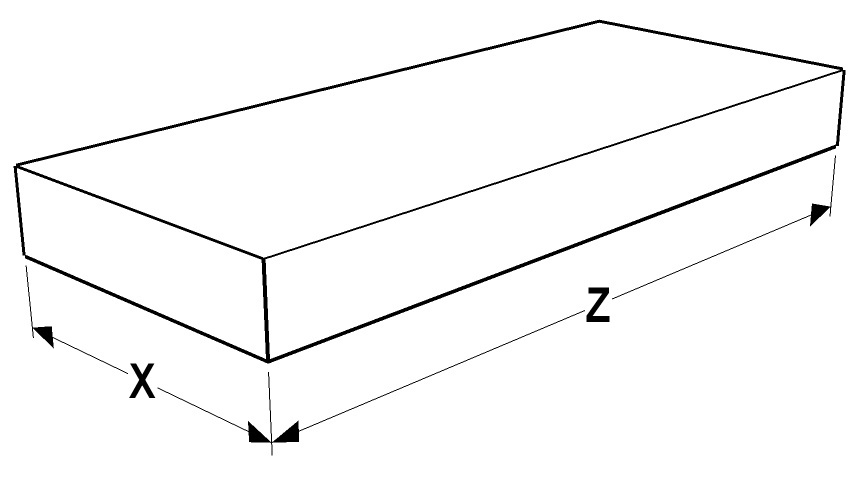

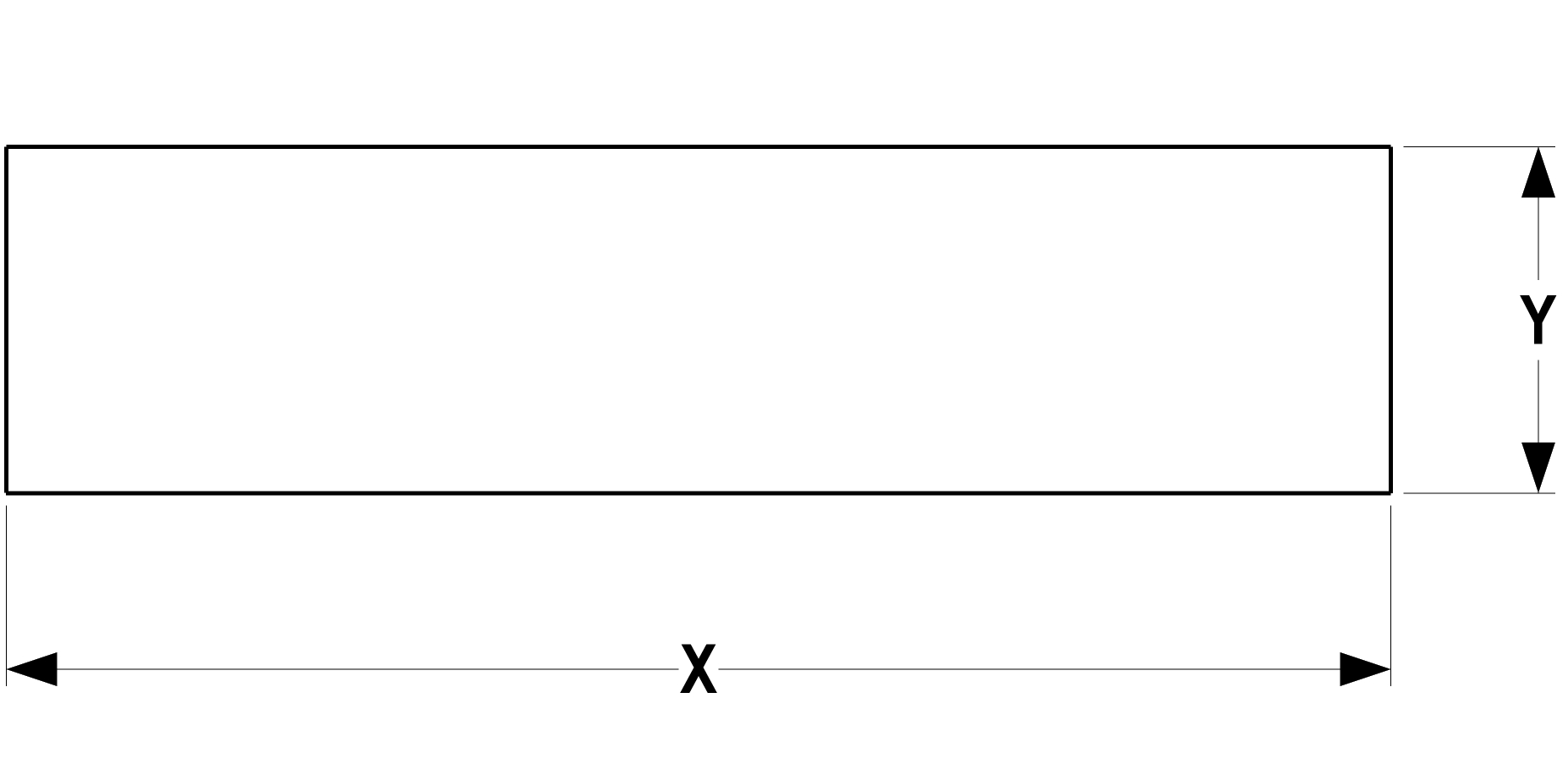

| Isometric View | Profile View | |
|---|---|---|
 |
 |
|
| Rendering | |||
|---|---|---|---|
|
|||
| Isometric View | Profile View | |
|---|---|---|
|
|
|
| X | Y | Z | ||
|---|---|---|---|---|
| 5" | 2" | 24" | ||
| 6" | 2" | 24" | ||
| 7-5/8" | 4" | 24" | ||
| 7" | 2" | 36" | ||
| 8" | 2" | 24" | ||
| 8" | 4" | 24" | ||
| 9-3/4" | 4" | 23-1/2" | ||
| 9" | 2" | 24" | ||
| 9" | 2" | 36" | ||
| 10" | 1-1/5" | 24" | ||
| 10" | 2" | 24" | ||
| 10" | 4" | 24" | ||
| 12" | 2" | 24" | ||
| 12" | 2" | 36" | ||
| 12" | 3" | 24" | ||
| 12" | 4" | 24" | ||
| 12" | 4" | 48" | ||
| 14" | 2" | 24" | ||
| 14" | 4" | 16" | ||
| 15" | 3" | 24" | ||
| 16" | 2" | 24" | ||
| 16" | 3" | 24" | ||
| 16" | 4" | 24" | ||
| 18" | 1" | 24" | ||
| 18" | 2" | 24" | ||
| 20" | 2" | 24" | ||
| 20" | 4" | 24" | ||
| 24" | 2-1/2" | 24" | ||
